***BRAND NEW***

The WRP1 ripper and pipe layer is perfect for laying pipes or cabling around paddocks or fields, for pipes up to 4.5cm.

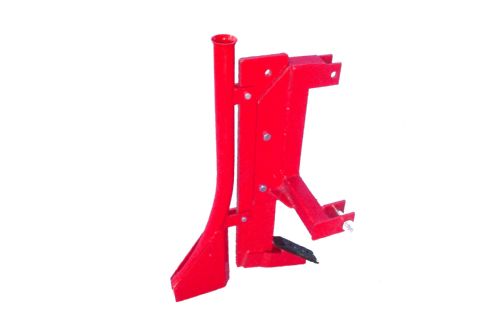

The WRP1 Winton 4.5cm Ripper & Pipe Layer is ideal for smallholdings and other small groundworks needs. It is designed for laying water pipe or armoured cable. The attachment benefits from being quick and easy to use.

The WRP1 is perfect for flexible pipe or cabling up to 4.5cm diameter. Maximum diameter of pipe or cable being laid depends on its flexibility, so please call for guidance if unsure. Usual operating depth is 45cm, but this depends on soil type and tractor size. The maximum depth is 60cm. The working depth can be easily adjusted. This is achieved by unbolting the ripper sections and repositioning at the desired height.

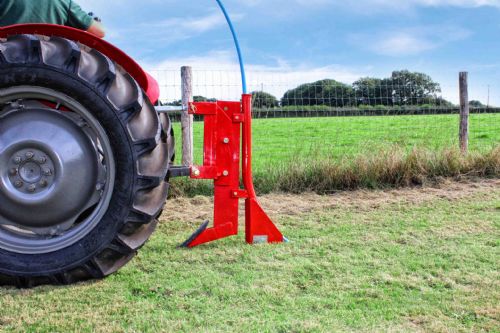

To operate the tractor, the linkage arms should be lowered towards the ground whilst slowly moving forwards. The ripper will dig into the soil. Lower the implement to the desired level and feed through the pipe/cable. This means you may need a second person to feed in the pipe whilst driving. Then lift the attachment out of the soil when completed and run over the ripped soil with your tractor tyres. This will leave a neat finish.

The blade is reversible when it is worn down, but can be easily replaced. Therefore, this will save both time and money.

The pipe layer section can be completely removed so it can be used the unit as a stand alone ripper.

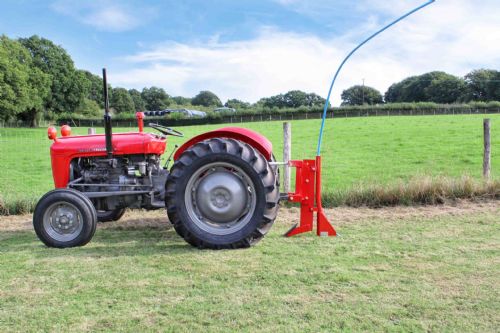

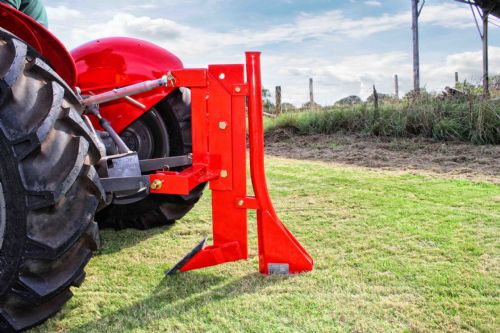

The Winton 4.5cm Ripper & Pipe Layer can be attached to the 3 point linkage of a range of small or compact tractors.

This attachment is quick and simple to fit and operate, which saves time and effort.

Specifications:

Weight 45kg
Working Width 4.5cm
Tractor Range 15-35HP
Linkage Type Cat 1
Lower Linkage Width 48cm
Working Depth 60cm
Number of Blades 1

Features

Easy depth adjustment
Reversible and replaceable blade
Detachable pipe layer section
Simple to fit, operate and remove
Allows flexible pipe up to 4.5cm diameter
Maximum ripping depth of 60cm

***Delivery can be arranged for an additional fee***
