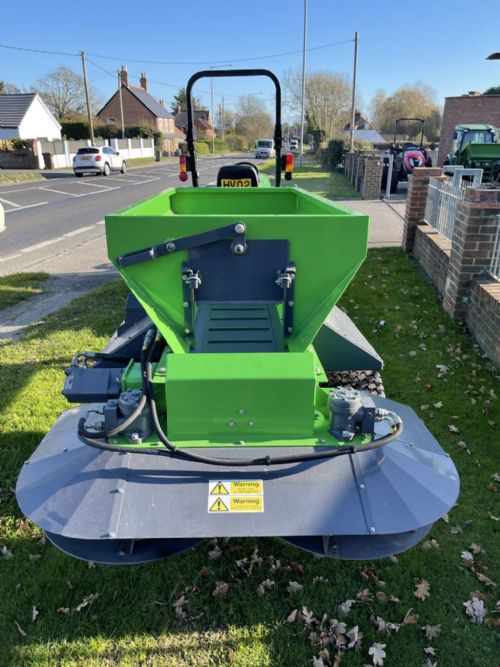

New Star Green TD700T topdresser fitted with the following:

0.7m³ mild steel hopper with steep sides and an uninterrupted material flow onto the belt

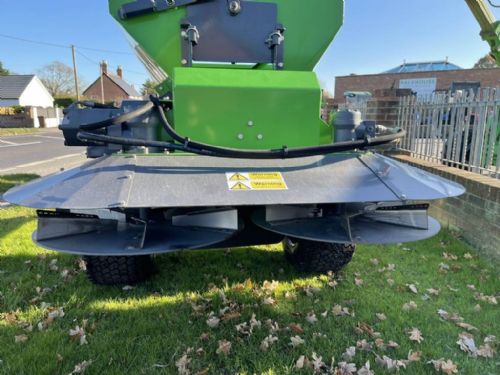

Hydraulically driven twin 650mm spreading discs with adjustable stainless steel vanes spreading from 2 metres up to 15 metres – dependent on hydraulic oil flow available and material type and condition
Overrun valves fitted to the disc motors to eliminate hydraulic spikes to the system, which can cause damage to hoses.

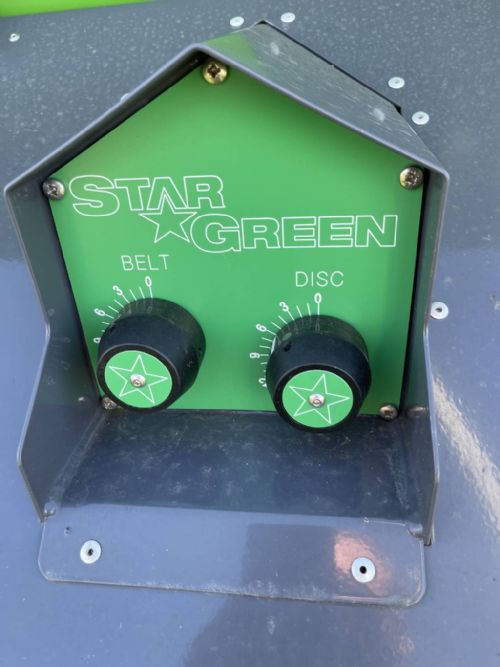

Manually adjustable control of the spreading width and conveyor belt speed with 18 detent positions
Adjustable disc position to fine-tune spreading pattern by changing the drop point on the spreading discs
Multi-position rear variable discharge door
400mm wide PVC belt with central under tracking to maintain belt position on the drums, with two-third length horizontal cleats for positive material distribution onto the discs
Large drive and idle drums lagged in neoprene material to give superior grip and reduce belt wear
Hydraulically powered from the utility vehicle's auxiliary hydraulic circuit (spool valves)
Spreading disc action is controlled by the activation and de-activation of the auxiliary hydraulic circuit (spool valves) conveyor belt controlled in the cab.
Under belt cleaning brush
Bolt-on mounting brackets to suit various utility vehicles
Trailer chassis fitted with adjustable height ring hitch and 26×12-12 turf tyres
Adjustable prop stand which can be detached when not in use
All metal work blast cleaned prior to zinc-rich powder prime and finished in polyester powder coat finish.

SKU: 220126
