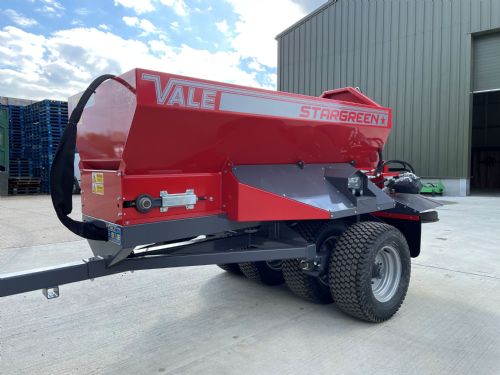

New 2025 StarGreen TD700T Trailed Hydraulic Broadcast Top Dresser.
0.7m³ mild steel hopper with steep sides for uninterrupted material flow onto the belt.

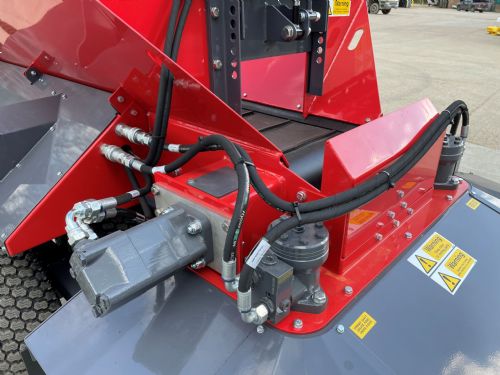

Hydraulically driven 650mm twin spreading discs with adjustable stainless steel vanes.
Spreading width from 2 metres up to 15 metres dependant on hydraulic oil flow.
Hydraulic motor overrun valves eliminate hydraulic spikes to the system.

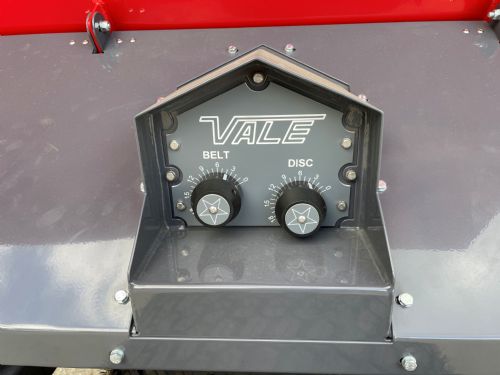

Adjustable 18 detent control of the spreading width and conveyor belt speed.
Adjustable disc position to fine tune spreading pattern by changing the drop point.

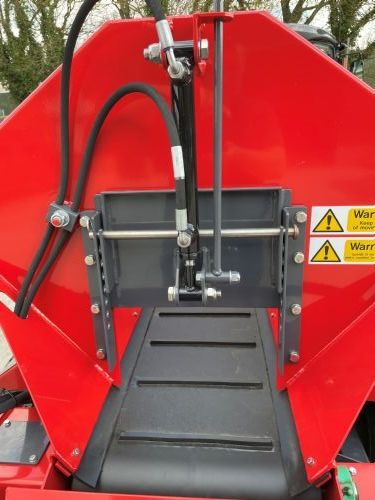

Multi position rear variable discharge door.
400mm PVC belt with central under tracking to maintain belt position on drive rollers.
Horizontal cleated belt for positive material distribution on to disc.
Neoprene covered drive and idle rollers give superior grip and reduce belt wear.
Hydraulically powered from the tractor auxiliary hydraulic valves.

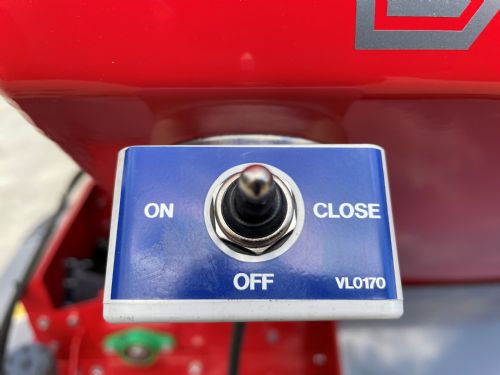

Electric ON/OFF switchbox control.
Under belt cleaning brush.
Trailed chassis fitted with adjustable height ring hitch.
Walking beam axle with four inline 23×10.50-12 turf tyres.
Zinc rich powder prime and finished in polyester powder coat RED paint.
